Fiber Laser Cutting Machine 1530

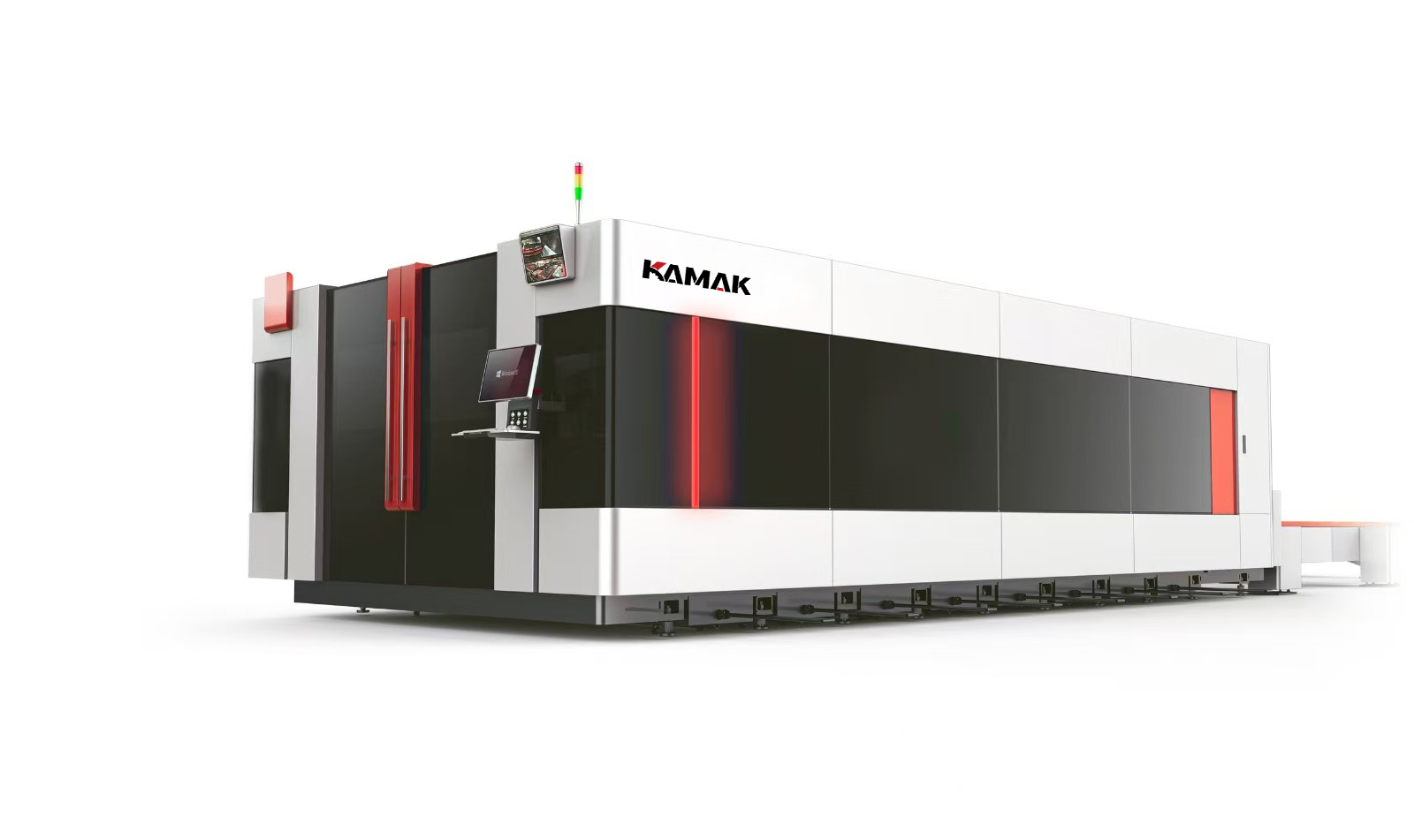

KM-CE 1530
The KM-CE 1530 is a versatile fiber laser cutting machine designed for small to medium production facilities. Features a 1500x3000mm working area with exchange table for continuous operation.
Technical Specifications
- Working Area
- 1500 x 3000 mm
- Laser Power
- 1500W / 2000W / 3000W / 4000W / 6000W
- Laser Source
- Fiber Laser (Raycus/IPG)
- Max Speed
- 100 m/min
- Repeatability
- ±0.03 mm
- Control System
- Cypcut / Beckhoff
Technical Specifications
| Working Area | 1500 x 3000 mm |
| Laser Power Options | 1500W / 2000W / 3000W / 4000W / 6000W |
| Laser Source | Fiber Laser (Raycus/IPG) |
| Max Speed | 100 m/min |
| Repeatability | ±0.03 mm |
| Control System | Cypcut / Beckhoff |
| Cooling System | Water cooling |
| Voltage | 380V 50Hz |
| Max Cut - Carbon Steel | 20 mm |
| Max Cut - Stainless Steel | 12 mm |
| Max Cut - Aluminum | 10 mm |
Features
- Exchange Table
- Automatic Focus
- Auto Cleaning Nozzle
- Dust Extraction
Applications
Sheet Metal Signage & Advertising Automotive Furniture
