LUCOHE Sheet Metal Signage & Advertising Automotive Furniture Heavy Industry
Fiber Laser Cutting Machine LCH-KMK-2010C
LCH-KMK-2010C

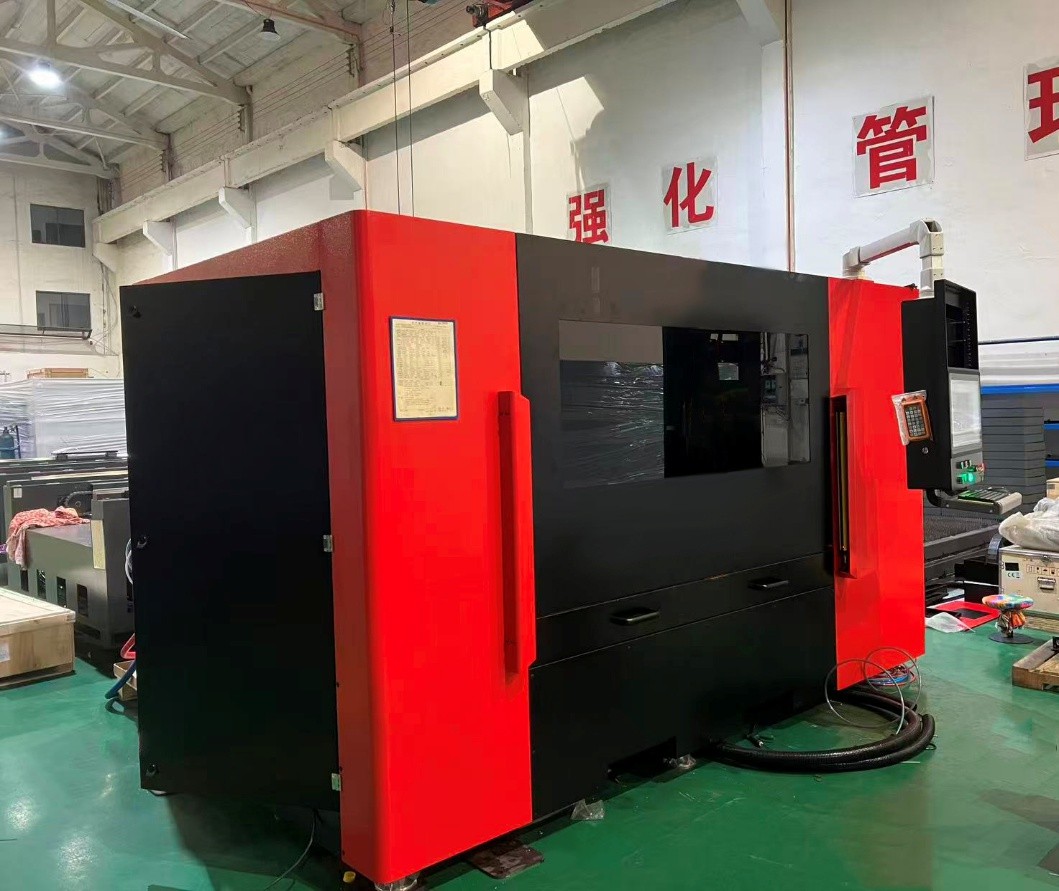

The LCH-KMK-2010C is a compact fiber laser cutting machine with fully enclosed safety cabin and single workbench. Equipped with 3 kW Raycus laser source, BLT autofocus cutting head and Yaskawa servo motors. Includes Cypcut software, light curtains, anti-radiation glass, chiller, stabiliser, 15 kW air compressor and 4-barrel dust collector.
Technical Specifications
- Laser power
- 3 kW
- Acceleration
- 1.5G
Technical Specifications
| Laser power | 3 kW |
| Laser source | Raycus |
| Repeatability | ±0.02 mm |
| Max speed | 100 m/min |
| Acceleration | 1.5G |
| Working area | 2000 × 1000 mm |
| Software | Cypcut |
| Cutting head | BLT Autofocus |
| Servo motors | Yaskawa |
| Max aluminium | 5 mm |
| Max stainless steel | 6 mm |
| Max carbon steel | 14 mm |
| Positioning accuracy | ±0.03 mm |
Features
- Enclosed Safety Cabin
- Automatic Focus
- Dust Extraction
- Laser Safety System
- Safety Enclosure
Applications
Sheet Metal Signage & Advertising Automotive Furniture Heavy Industry
